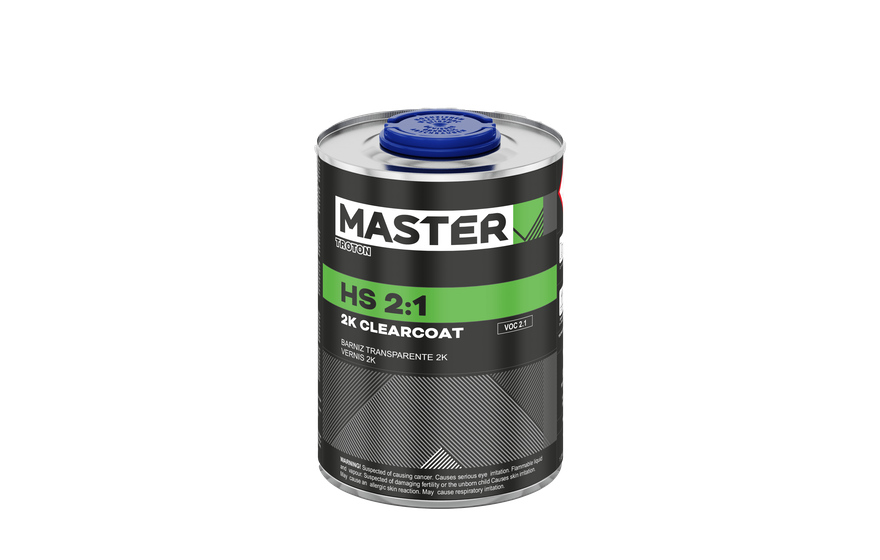

HS 2:1

Urethane clearcoat VOC 2.1

Variants

Art. no.CapacityQuantity per carton
164501 l6
164335 l4
hardeners
medium164510,5 l6
164342,5 l4
fast165570,5 l6
165072,5 l4
slow165560,5 l6
165082,5 l4

Gloss grade

very high gloss
HS 2:1

Technical documentation

Description

2K high quality universal urethane clearcoat with high solids content. Designed for partial or complete car body top coating. Very easy to apply with great flow, exceptional leveling and fast hardening time. Provides excellent coat appearance with very high gloss and depth. Features high hardness and mechanical resistance. Available hardeners: medium, fast and slow.

Important informations

  • Proporcje mieszania

    Mixing ratio
    by volume – 2 : 1 + 0 ÷ 5 %

  • Lepkość natryskowa

    Viscosity
    15 ÷ 17 s / 68°F

  • Żywotność mieszanki

    Pot life
    3 h / 68°F

  • Liczba warstw

    2 x 1
    HVLP / RP
    Ø1,2 ÷ 1,4 mm

  • Czas odparowania

    between layers
    5 ÷ 6 min

  • Czas odparowania

    before baking
    5 ÷ 10 min

  • Czas utwardzania

    Curing time
    20 min / 140°F

Application process

  • Zastosowanie
  • Use

    For car body repair.

  • Proporcje mieszania
  • Mixing ratio by volume

    Clear Coat: 2 parts
    Hardener: 1 part
    Reducer: 0÷5%

  • Lepkość natryskowa
  • Spraying viscosity

    15÷17 seconds at 20°C (68°F)/DIN4 for mixing ratio 2:1+5%.

  • Żywotność mieszanki
  • Pot life

    3 hour at 20°C (68°F)/DIN4.

  • Czas odparowania
  • Evaporation time

    Between layers: 4÷8 minutes

    Before baking: 5÷10 minutes

  • Liczba warstw
  • Number of layers

    Number of spray coats: 2 wet coats.
    Dry film thickness: about 60÷70 μm (2,36÷2,75 mils).

    Gun parameters:
    RP nozzle:
    Gravity Feed: 1.2÷1.4mm (0,047÷0,055 inches);
    Spraying Pressure: 2.2 bar (31,9 psi).

    HVLP nozzle:
    Gravity Feed: 1.2÷1.4mm (0,047÷0,055 inches);
    Spraying Pressure: 0,7 bar (10,1 psi).

  • Czas utwardzania
  • Hardening time at 20°C
    HardenerFlash time [min]Dust free [min]Sand [H]Delivery [H]
    Fast5÷7401415 min/60°C (140°F)
    Standard5÷7501520 min/60°C (140°F)
    Slow8÷10601630 min/60°C (140°F)
