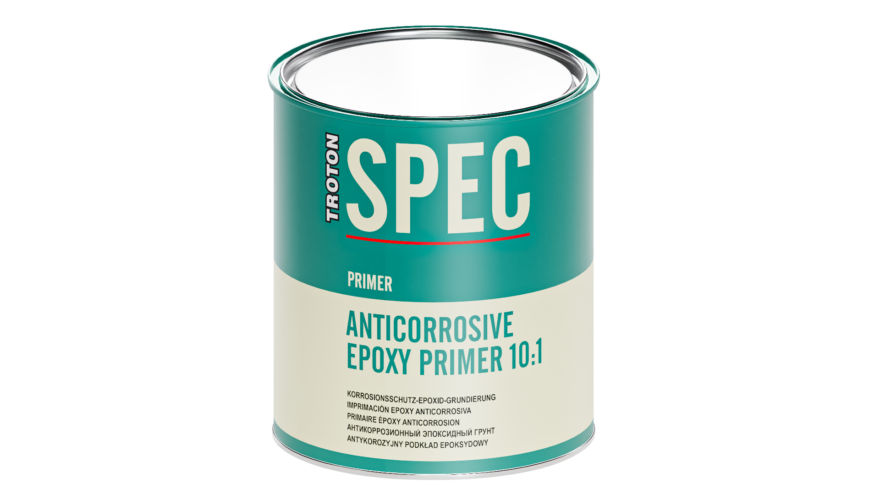

Anticorrosive Epoxy Primer 10:1

Epoxy Primer

Variants

ColourArt. No.CapacityQuantity per carton
light grey1608910kg+1kg (set)-
light grey165325 kg4
hardener3000105690,5 kg4

Gloss grade

matt
Anticorrosive Epoxy Primer 10:1
New

Technical documentation

Description

2K high build epoxy primer with anti-corrosion additives. Intended for anti-corrosion protection of various types of steel surfaces, including commercial vehicles, means of transport, agricultural machinery, and steel structures.

Advantages

  • Excellent anti-corrosion protection for steel surfaces.
  • Allows for thick layer application.
  • Very high adhesion to various substrates.
  • Easy mixing and application process.
  • High durability.
  • Excellent coverage and flow.

Important informations

  • Przetrzeć odtłuścić

    degrease

  • Proporcje mieszania

    Mixing ratio
    10 : 1 + 30÷35% (by weight)
    10 : 1,5 + 30÷35% (by volume)

  • Lepkość natryskowa

    Spraying viscosity
    30 ÷ 50s / 20°C

  • Żywotność mieszanki

    Pot life
    1,5 h / 20°C

  • Liczba warstw

    1÷3 layers
    HVLP / RP
    ø1,6÷2,2 mm

  • Czas odparowania

    between layers
    ~10 min.

  • Czas odparowania

    before baking
    ~ 15 min.

  • Czas utwardzania

    Hardening time
    24 h / 20°C
    45 min / 60°C

  • Szlifowanie na sucho

    P320÷P400

Application process

  • Zastosowanie
  • Use

    Product designed for anti-corrosion protection of various types of steel surfaces, including commercial vehicles, means of transport, agricultural machinery, and steel structures.

  • Proporcje mieszania
  • Mixing ratio

    By weight
    Primer: 10
    Hardener: 1
    Thinner: 30÷35%

    By volume
    Primer: 10
    Hardener: 1,5
    Thinner: 30÷35%

    Stir thoroughly until achieving homogenous mixture.

  • Lepkość natryskowa
  • Spraying viscosity

    30÷50 seconds at 20°C

  • Żywotność mieszanki
  • Pot life

    approx. 1,5 h at 20°C.

  • Liczba warstw
  • Number of layers

    1÷3 layers  Recommended coating thickness: 150÷300 μm dry (200÷450 μm wet)
    Pneumatic spraying
    Gun parameters RP/HVLP
    Nozzle: 1,6÷2,2 mm; Inlet pressure: 2,0÷2,2 bar.
    Airless spraying with air jacket*
    Nozzle: 0,38÷0,43 mm; Pressure: 100÷160 bar; air jacket: 2 bar
    *depending of the recommendations of the equipment manufacturer

  • Czas odparowania
  • Evaporation time

    Between layers: approx. 10 minutes
    Before baking: approx. 15 minutes

    Evaporation time depends on the temperature and the layer thickness.

  • Czas utwardzania
  • Hardening time

    Depending on the layer thickness:

    • at 20°C – approx. 24h
    • at 60°C – approx. 45 minutes

    Temperature below 20°C significantly increases the hardening time.

  • Suszenie promieniem IR
  • IR drying

    10÷15 minutes of short waves for the thickness of 150÷200μm. Do not exceed 60°C. Use as recommended by the equipment manufacturer. Wait about 10 minutes before starting the heater drying.

  • Szlifowanie na sucho
  • Dry sanding

    Hand sanding: P280÷P320
    Machine sanding: P320÷P400

  • Informacja
  • Further work

    2K epoxy primers can be directly over coated with following Troton products:

    • 2K topcoats.
    • 1K basecoats.
    • 2K acrylic primers.
    • 2K polyester body fillers.
    • 2K epoxy body fillers.
  • Informacja
  • General notes
    • Do not exceed recommended doses of the hardener!
    • The best repair results can be achieved at room temperature. The temperature in the body shop and the temperature of the product should be similar.
    • When working with 2K products, it is recommended to use personal protection equipment. Protect the eyes and respiratory system.
    • The rooms should be well ventilated.
    • Clean the guns and equipment immediately after use.
    • The product cannot be applied over wash primers and 1K primers.

    Caution: To maintain safety, always follow the instructions given in the MSDS for the products.
