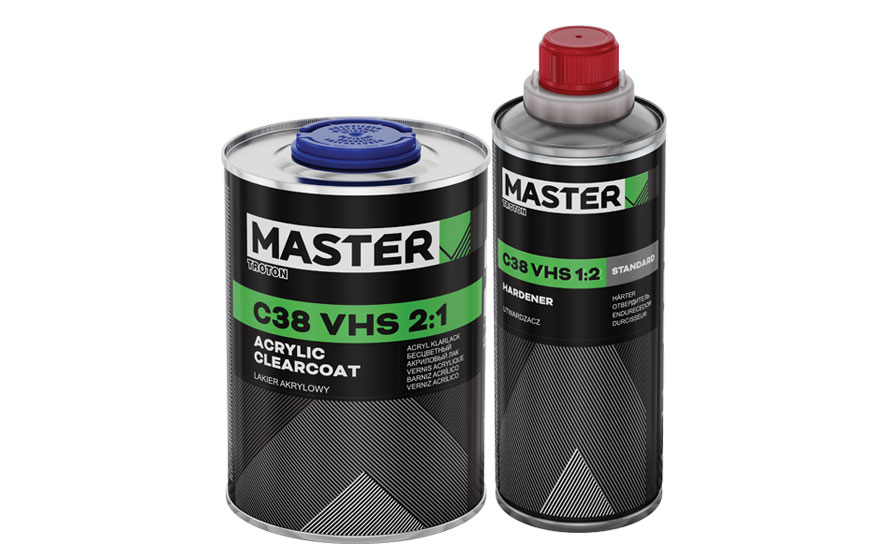

C38 VHS 2:1

Acrylic clearcoat

Variants

ColourArt. No.CapacityQuantity per carton
transparent130901 l6
transparent130925 l4
Hardener for clearcoat
standard13091 0,5 l 6
standard13093 2,5 l 4
fast13101 0,5 l 6
fast131022,5 l4
slow142680,5 l6
slow142692,5 l4

Gloss grade

high gloss
C38 VHS 2:1

Technical documentation

Weight/Volume Calculator

ml g
Varnish
Hardener: 0 0
Total of mixture 0 0
Minimum thinner 0% 0 0
Total of mixture 0 0
Maximum thinner 0% 0 0
Total of mixture 0 0
Thinner value % 0 0
Warning: Value is not within the tolerance given by the manufacturer. (Min: , Max: ).
Total of mixture 0 0

Video

Description

High-quality 2K acrylic clearcoat for car repairs with a very low content of volatile compounds. The short drying time (3 hours at 20°C) combined with the extended pot life of the mixture allows for partial and overall paiting of the entire car body.

Performance: 1 liter of the mixture is enough to paint 10 m2 of surface with a a thickness layer of 60 μm.

Advantages

  • For the repair of small and large areas.
  • Very high solids content >55%.
  • Excellent finish.
  • Easy application.
  • Great overspray absorption.
  • Perfect flow.

Substrates

Acrylic clearcoats can be applied over:

  • Basecoats.
  • Old paint coatings in good condition after matting and degreasing.

Important informations

  • Przetrzeć odtłuścić

    degrease

  • Proporcje mieszania

    Mixing ratio
    2 : 1 + 0÷5%

  • Lepkość natryskowa

    Spraying viscosity
    17 ÷ 19s / 20°C

  • Żywotność mieszanki

    Pot life
    3,5 h / 20°C

  • Liczba warstw

    1,5 ÷ 2 layers
    HVLP / RP
    ø1,2 ÷ 1,4 mm

  • Czas odparowania

    between layers
    5 ÷ 10 min

  • Czas odparowania

    before baking
    10 min

  • Czas utwardzania

    Drying time
    3 h / 20°C
    15 min. / 60°C

Application process

  • Zastosowanie
  • Use

    For car body repair of small and large surfaces.

  • Proporcje mieszania
  • Mixing ratio by volume

    Clearcoat: 2
    Hardener: 1
    Thinner for acrylic systems: 0-5%

  • Lepkość natryskowa
  • Spraying viscosity

    17÷19 seconds at 20ºC DIN4

  • Żywotność mieszanki
  • Pot life for the mixture
    • 3,5 hours at 20ºC (standard hardener)
    • 2 hours at 20ºC (fast hardener)
  • Liczba warstw
  • Number of layers

    1.5 layers – 1 medium (thin) and then a full layer with 2 minutes of flash off between the layers in order to obtain a dry film thickness of 50-60 μm.
    2 layers: 2 full layers, total dry film thickness of 60÷75 μm

    Gun parameters:
    RP nozzle: 1.2÷1.4mm; Pressure of input: 2.0÷2.2 bars.
    HVLP nozzle: 1.3÷1.4mm; Inlet pressure: 2.0 bars.

  • Czas odparowania
  • Evaporation time

    Between layers: 5-10 min
    Before baking: 10 min

  • Czas utwardzania
  • Hardening time for standard hardener

    		 20°C

    60°C

    Dust dry

    		 40 min

    10 min

    Touch dry

    		 3 h

    15 min

    Hardness to use

    		 13 h

    15 min + 4 h /20°C

    Total hardness

    		 7 days

    15 min + 4 days /20°C
  • Suszenie promieniem IR
  • IR Drying

    10÷15 minutes under short wave depending on the total thickness and type of radiator. Do not exceed maximum temperature of 60°C. Use according to the recommendations of the equipment manufacturer. Wait about 10 minutes before starting IR drying.

  • Informacja
  • Performance

    1 liter of the mixture is enough to paint 10 m2 of surface with a layer thickness of 60 μm.

  • Informacja
  • Polishing and eliminating defects

    Usually polishing is unnecessary, as the C38 VHS Clearcoat 2:1 gives the surface a perfect finish immediately after application. However, if some dirt inclusions appear, we recommend removing them and then polishing the surface with an abrasive compound.

  • Informacja
  • General notes
    • Do not exceed recommended doses of the hardener!
    • The best repair results can be achieved by painting at room temperature. The temperature in the body shop and the temperature of the product should be similar.
    • When working with 2K products, it is recommended to use personal protection equipment. Protect the eyes and airways.
    • The rooms should be well ventilated.
    • Clean the guns and equipment immediately after use.

    Caution: To maintain safety, always follow the instructions given in the MSDS for the products.
