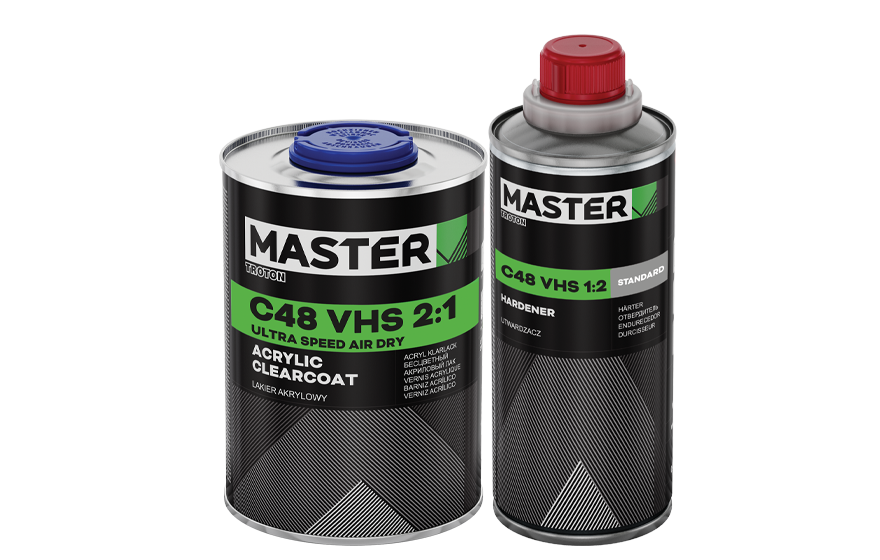

C48 VHS 2:1 Ultra Speed Air Dry

Fast Air-Drying acrylic clearcoat

Variants

Colour	Art. No.	Capacity	Quantity per carton
transparent	17843	1 l	6
transparent	17845	5 l	4
Hardener for clearcoat
standard	17844	0,5 l	6
standard	17846	2,5 l	4

Gloss grade

high gloss

New

Technical documentation

Weight/Volume Calculator

Colour:

Hardener:

		ml	g
Varnish
Hardener:		0	0
Total of mixture		0	0
Minimum thinner	0%	0	0
Total of mixture		0	0
Maximum thinner	0%	0	0
Total of mixture		0	0
Thinner value	%	0	0
Warning: Value is not within the tolerance given by the manufacturer. (Min: , Max: ).
Total of mixture		0	0

Description

High quality ultra fast air-dry 2K acrylic clearcoat for fast car repairs without the need for baking. Allows for significant reduction of working time and energy consumption.

Advantages

Ready for polishing in just 60 minutes at 20°C
Air Dry technology – curing without the need for baking
VHS formula – very high solids content
Premium finish – high gloss and outstanding depth of colour

Substrates

Acrylic clearcoats can be applied over:

Basecoats,
Old finishes in good condition after matting and degreasing.

Important informations

degrease
Mixing ratio
2 : 1
Spraying viscosity
13 ÷ 15 s / 20°C
Pot life
80 min / 20°C
1,5 ÷ 2 layers
HVLP / RP
ø1,2 ÷ 1,4 mm
between layers
2÷5 min
before baking
10 min
Hardening time
60 min / 20°C
10 min / 40°C

Use
Fast car body repair.

Mixing ratio by volume
Clearcoat: 2
Hardener: 1
Clearcoat does not require addition of thinner!

Spraying viscosity
13 ÷ 15 seconds at 20ºC

Pot life for the mixture
- 80 minutes at 20ºC

Number of layers
1.5 layers – 1 medium (thin) and then a full layer with 2 minutes of flash off between the layers in order to obtain a dry film thickness of 50-60 μm.
2 layers – 2 full layers with 2 minutes of flash off between the layers , total dry film thickness of 60÷70 μm.
RP gun parameters:
Nozzle: 1,2 ÷ 1,4 mm; Pressure of input: 2,0 ÷ 2,2bars.
HVLP RP gun parameters:
Nozzle: 1,3 ÷ 1,4 mm; Inlet pressure: 2.0 bars.

Hardening time
at 20°C at 40°C
Ready for polishing 60 min 10 min

IR Drying
Not recommended.

Performance
1 liter of the mixture is enough to paint 9 ÷ 9,5 m2 of surface with a layer thickness of 60 μm.

Shading
Make sure you have covered all the surface with the clearcoat. You should only shade the surface that has been covered and treated. Use InterTroton FADE OUT THINNER to clean any dust or dirt from the surface and to level out the optical gloss differences between the older and new applied coating.

Polishing and eliminating defects
Usually polishing is unnecessary, as the C48 VHS 2:1 Clearcoat gives the surface a perfect finish immediately after application. However, if some dirt inclusions appear, we recommend removing them and then polishing the surface with an abrasive compound.

General notes
- Do not exceed recommended doses of the hardener!
- The best repair results can be achieved by painting at room temperature. The temperature in the body shop and the temperature of the product should be similar.
- When working with 2K products, it is recommended to use personal protection equipment. Protect the eyes and airways.
- The rooms should be well ventilated.
- Clean the guns and equipment immediately after use.
Caution: To maintain safety, always follow the instructions given in the MSDS for the products.
